Online user actions

This example reproduces a typical data science situation in an internet company. We start from a pandas DataFrame with online user actions, for instance for an online text editor: the user can create a page, edit it, or delete it. We want to construct and visualize a graph of the users highlighting collaborations on the same page/project.

import igraph as ig
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

/home/docs/checkouts/readthedocs.org/user_builds/igraph/checkouts/0.11.4/doc/examples_sphinx-gallery/online_user_actions.py:13: DeprecationWarning:
Pyarrow will become a required dependency of pandas in the next major release of pandas (pandas 3.0),
(to allow more performant data types, such as the Arrow string type, and better interoperability with other libraries)
but was not found to be installed on your system.
If this would cause problems for you,
please provide us feedback at https://github.com/pandas-dev/pandas/issues/54466

  import pandas as pd

Let’s start by preparing some toy data representing online users. Each row indicates a certain action taken by a user (e.g. click on a button within a website). Actual user data usually come with time stamp, but that’s not essential for this example.

action_dataframe = pd.DataFrame([
    ['dsj3239asadsa3', 'createPage', 'greatProject'],
    ['2r09ej221sk2k5', 'editPage', 'greatProject'],
    ['dsj3239asadsa3', 'editPage', 'greatProject'],
    ['789dsadafj32jj', 'editPage', 'greatProject'],
    ['oi32ncwosap399', 'editPage', 'greatProject'],
    ['4r4320dkqpdokk', 'createPage', 'miniProject'],
    ['320eljl3lk3239', 'editPage', 'miniProject'],
    ['dsj3239asadsa3', 'editPage', 'miniProject'],
    ['3203ejew332323', 'createPage', 'private'],
    ['3203ejew332323', 'editPage', 'private'],
    ['40m11919332msa', 'createPage', 'private2'],
    ['40m11919332msa', 'editPage', 'private2'],
    ['dsj3239asadsa3', 'createPage', 'anotherGreatProject'],
    ['2r09ej221sk2k5', 'editPage', 'anotherGreatProject'],
    ],
    columns=['userid', 'action', 'project'],
)

The goal of this example is to check when two users worked on the same page. We choose to use a weighted adjacency matrix for this, i.e. a table with rows and columns indexes by the users that has nonzero entries whenever folks collaborate. First, let’s get the users and prepare an empty matrix:

users = action_dataframe['userid'].unique()
adjacency_matrix = pd.DataFrame(
    np.zeros((len(users), len(users)), np.int32),
    index=users,
    columns=users,
)

Then, let’s iterate over all projects one by one, and add all collaborations:

for _project, project_data in action_dataframe.groupby('project'):
    project_users = project_data['userid'].values
    for i1, user1 in enumerate(project_users):
        for user2 in project_users[:i1]:
            adjacency_matrix.at[user1, user2] += 1

There are many ways to achieve the above matrix, so don’t be surprised if you came up with another algorithm ;-) Now it’s time to make the graph:

g = ig.Graph.Weighted_Adjacency(adjacency_matrix, mode='plus')

We can take a look at the graph via plotting functions. We can first make a layout:

layout = g.layout('circle')

Then we can prepare vertex sizes based on their closeness to other vertices

vertex_size = g.closeness()
vertex_size = [10 * v**2 if not np.isnan(v) else 10 for v in vertex_size]

Finally, we can plot the graph:

fig, ax = plt.subplots()
ig.plot(
    g,
    target=ax,
    layout=layout,
    vertex_label=g.vs['name'],
    vertex_color="lightblue",
    vertex_size=vertex_size,
    edge_width=g.es["weight"],
)
plt.show()

Loops indicate “self-collaborations”, which are not very meaningful. To filter out loops without losing the edge weights, we can use:

g = g.simplify(combine_edges='first')

fig, ax = plt.subplots()

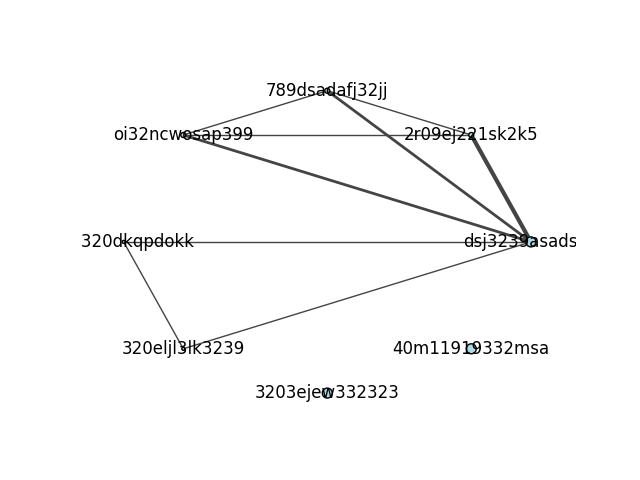

ig.plot(
    g,
    target=ax,
    layout=layout,
    vertex_label=g.vs['name'],
    vertex_color="lightblue",
    vertex_size=vertex_size,
    edge_width=g.es["weight"],
)
plt.show()
